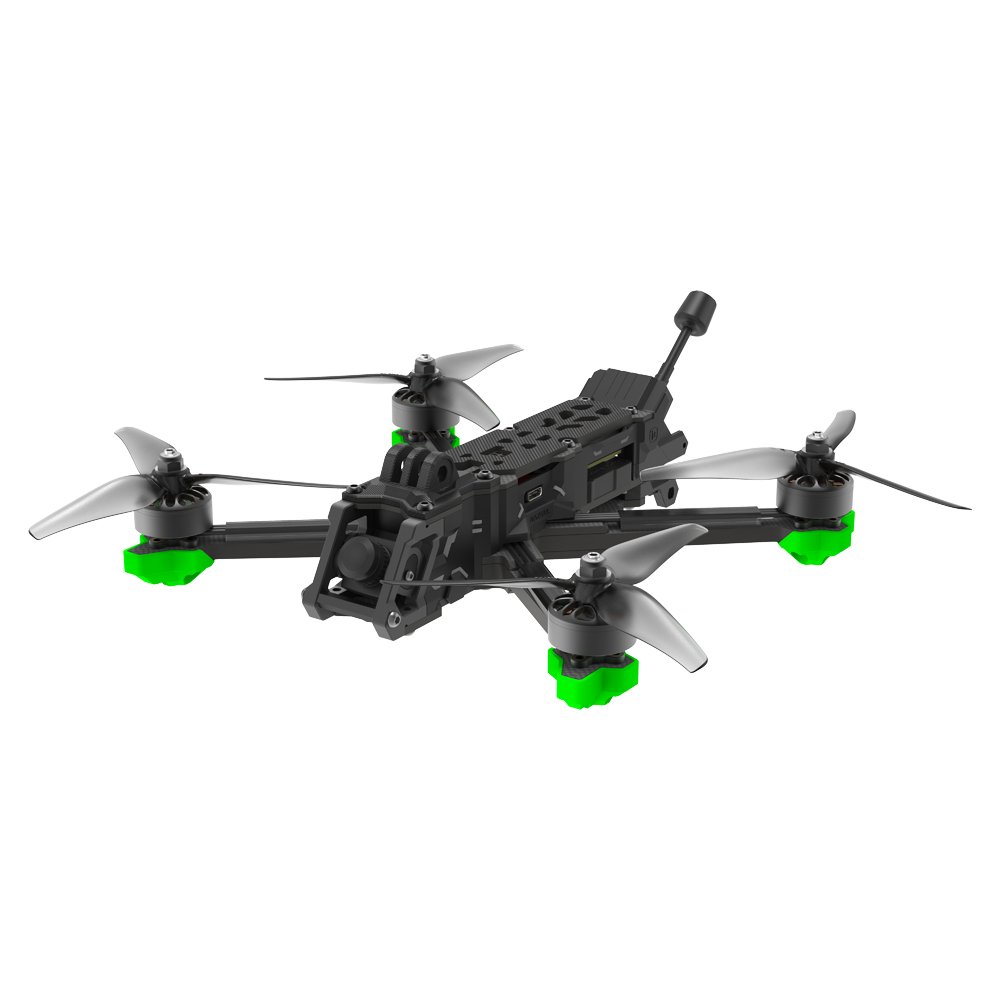

Introducing the Evoque F5 V2 Drone
Discover the ultimate flying experience with the Evoque F5 V2 Drone, an upgraded version of our best-selling drone. Built with powerful XING2 motors and a highly protective Nazgul frame, this drone promises smooth flights and superior protection for your electronics. With cutting-edge features such as secured battery plug with anti-spark filter and a Blitz Whoop 1.6W VTX, the Evoque F5 V2 is perfect for both beginners and experienced pilots.
Smooth and Powerful XING2 Motors
Experience the latest upgrade of our bestseller XING motors, designed to deliver uncompromised performance. This drone features durable unibell (one-piece bell) technology, strong titanium alloy shaft with a reinforced bell joint, crash-resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets, and our XING O-ring bushing gap protection.
Latest Nazgul Frame for Maximum Protection
Say goodbye to the days of your electronics getting covered in dirt and wet grass with every crash. Our latest Nazgul frame design reduces contamination buildup on your flight controller and ESCs, preventing failure or short circuits. Strategic airflow keeps your components cool and clean while maintaining optimal weight and performance. The drone also features illuminated side panels and 360-degree TPU protective parts.
Secured Battery Plug with Anti-Spark Filter
Eliminate the loud spark created when plugging in a battery with our innovative anti-spark filter. This protective circuit extends the lifespan of XT60 connectors and prevents rapid voltage or current spikes, protecting your electronics from potential damage.
Specifications
- Product Name: Evoque F5 V2
- Operating Temperature Range: -10° to 40° C (14° to 104° F)
- Antennas: Single Antennas
Package Included
- 1 x Nazgul Evoque F5 V2 Analog (Squashed X)
- 4 x Nazgul 5 inch Props
- 2 sets of Battery pads
- 2 x Battery straps
- 1 x Screw bag
Product Specifications
BLITZ MINI F7 Flight Controller
|
- MCU: STM32 F722
- Gyro: BMI270
- Baro: DPS310
- OSD: IFLIGHT OSD （AT7456E）
- BEC: 5V 2.5A
- BlackBox: 16MB
- Uart: 5*UART(UART1、UART2、UART3、UART4、UART:6)
- UART1 for VTX HD/Analog
- UART2 for Receiver
- UART3、UART4 for GPS or other sensors that require a serial port
- UART6 for ESC Telemetry
- 1×I2C
- 1xSH1.0 9pin connector for HD VTX/Analog VTX&CAM （5V/BAT/G/VO/T1/R1 /5V/G/VI）
- 1xSH1.0 8pin connector for ESC（R6/CUR/M4/M3/M2/M1/BAT/G)
- 1xSH1.0 6pin connector for Any Receiver or DJI（3V3/R2/5V /G/R2/T2）
- 1xSH1.0 4Pin connector GPS (T4/R4/G/5V)
- 1xSH1.0 4Pin connector LED & Beeper (BUZ/LED/G/5V)
- 4×0402 LEDs for FC STATUS (3.3V Red) / (Start Blue) / (5V Green)/（BAT Orange）
- Smartaudio & IRCTramp VTX protocol supported
- WS2812ledStrip: Yes
- Bepper: Yes
- Firmware: IFRC-IFLIGHT_BLITZ_F722
- Outer Size: 30.5*27mm / 20*20mm φ4 mounting
- Weight: 5.0g
|
BLITZ Mini E55 4IN1 ESC
|
Input: 2-6s LiPo
Constant: 55 Amps (per channel)
MCU: BB21
Burst: 60 Amps (per channel)
BEC: No
BlHeli32 telemetry: Yes
Dimensions: 42*35mm
Mounting Holes: 20*20mm φ3mm with Grommets φ2mm
Weight: 11.3g
Target: QH-50 16.7
|
BLITZ Whoop 1.6W VTX
|
Input voltage: 7V～34V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5x30.5mm/Φ3
Lightweight: 18.9g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW
|
Product Images
